Indoor Fine Pitch LED displays, by Liantronics

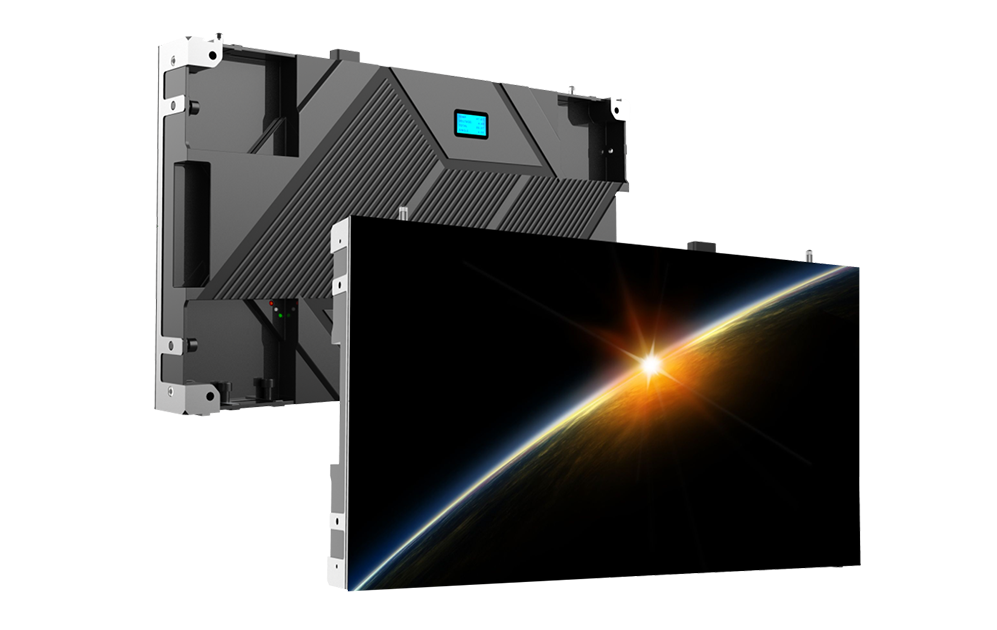

VAII Series Fine-pitch LED Display

Press for Video

Key Features:

Pixel Pitch: 0.9, 1.1, 1.2, 1.4, 1.5, 1.8mm
Panel Size: 16:9 @ 600mm(W) × 337.5mm(H) x 60 mm(D)
Panel Size: 8:9 @ 600mm(W) × 675mm(H) x 60 mm(D)
Weight: 6.7kg for standard panel, 10kg for larger 8:9 Panel
Brightness: 600nits adjustable
Service Access: Front
Panel Material: Die-casting aluminum

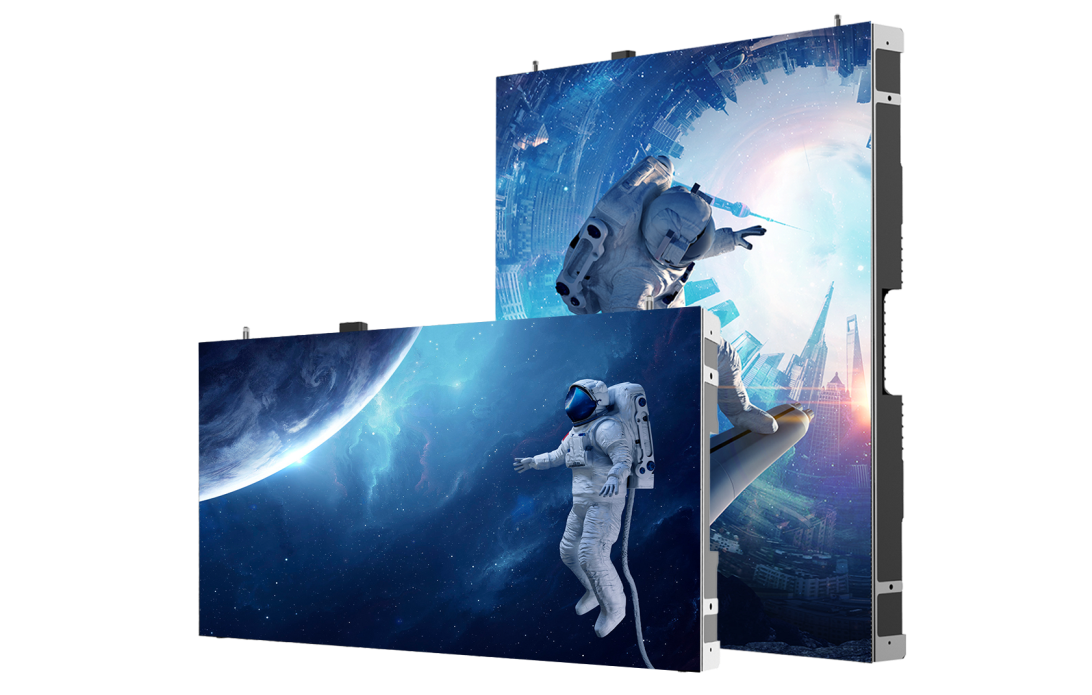

16:9 HD Aspect Ratio & New Larger 8:9 Panels

VAII series 16:9 HD aspect ratio panel’s can be easily assembled into common HD displays to perfectly match mainstream video sources. New larger size 8:9 Panels allow for 16:9 formats to be created with few panels and reduced costs.

Function meets Form

Standard built-in A/C power with an aluminum rear shell with a cooling silicone layer for excellent heat dissipation. Exterior geometrically aesthetic thermal slots to further amplify the cooing area.

True-to-life Image Reproduction

High contrast ratio & grayscale, NTSC-level color gamut, ultra-high flatness and 160° wide views combine to create exceptional images with sharp colors. The latest LianTronics Picture Engine Technology enables to elevate the demonstrated pictures into 22bit+ realistic effect.

Flexible and versatile mounting

Multiple installation possibilities including, wall and floor mounting, and hanging and can support flat or curved installation applications.

User-friendly Complete Front Serviceability

All removable components can be maintained from the front. The friendly serviceability gives you higher installation flexibility to meet your needs.

Ergonomic and convenience

Built-in handles, shaded treatment edges, protective bevels, optional monitoring LCD panel, and more. Ergonomic design details combine to provide you with the ultimate handling experience.

Intelligent System and Module

Optional LCD panel allows for instant monitoring of cabinet operation. VAII panels support real-time monitoring from smart terminals and historical logging. Calibration retrieval can be completed automatically after module replacement.
