Indoor Fine Pitch LED displays, by Liantronics

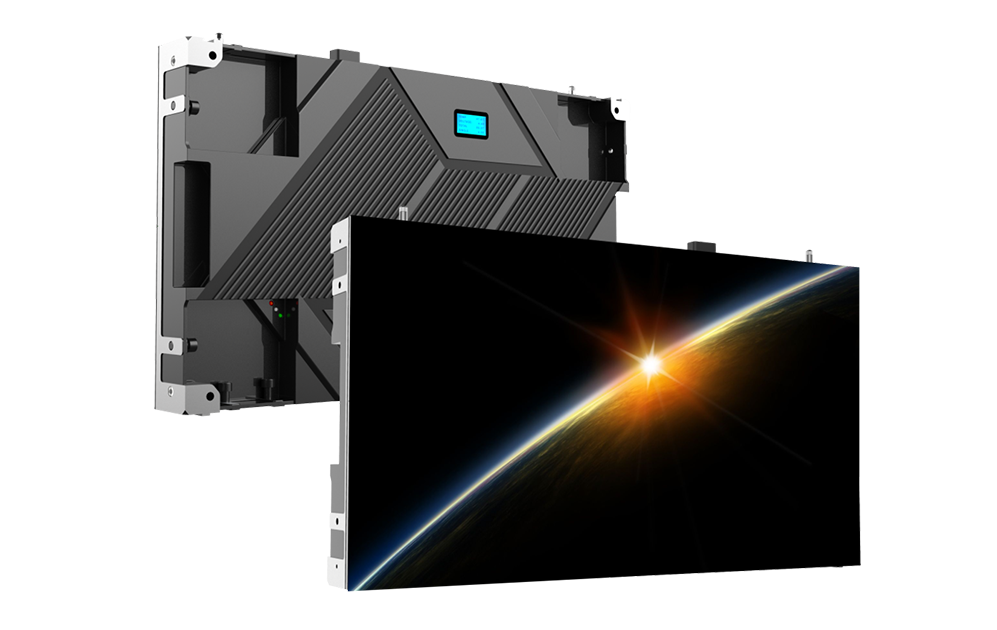

VF Series, Ultra-thin & Sleek LED Panel

Featuring a thinner & lighter design, VF series renders aesthetic beauty to your space by harmonizing with the environment displaying superb quality life like images.

Press for Video

Key Features:

Pixel Pitch: 0.9, 1.2, 1.5, 1.9, & 2.5mm
Panel Size: 610 × 343mm
Weight: 6.7kg/pcs
Brightness: 600nits adjustable
Service Access: Front
Panel Material: Die-casting aluminum

16:9 HD Aspect Ratio Panels

VF series 16:9 HD aspect ratio panel’s can be easily assembled into common HD displays to perfectly match mainstream video sources.

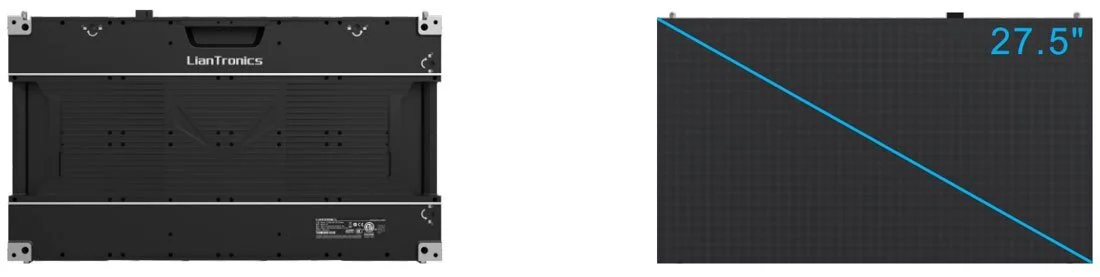

VF Series convenient 27.5" diagonal size panels makes it easy to upgrade any 55” LCD video wall to direct view LED.

VF Series flexible, versatile, mounting allows for multiple installation possibilities including; wall and floor mounting; top support mounting, and will support flat or curved installation applications.

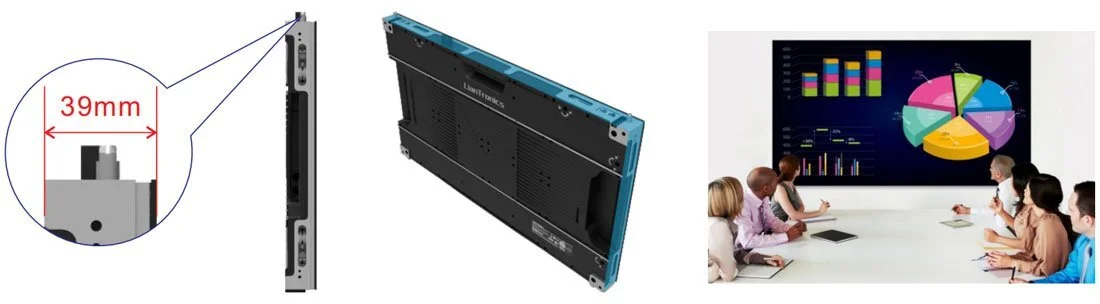

ADA Compliant Slim Cabinet Design

VF Series’ 39mm cabinet depth is about half the depth of conventional direct view LED display cabinets. The total installed depth including a wall mount bracket has an overall depth of only 64mm. This equates to about 64% of the ADA compliance regulations. The light-weight design of 6.7kg per panel is 25% lighter than conventional LED panels, allowing for a less expensive structural wall to be built.

Simple Wall Mount Installation

Interlocking Structure

The interlocking structure design used by VF series not only guarantees high precision, but also cuts down on installation time.

Complete Front Maintenance and Access

Components such as LED modules, power supplies, and system boards can be quickly and easily maintained from the front without rear access.

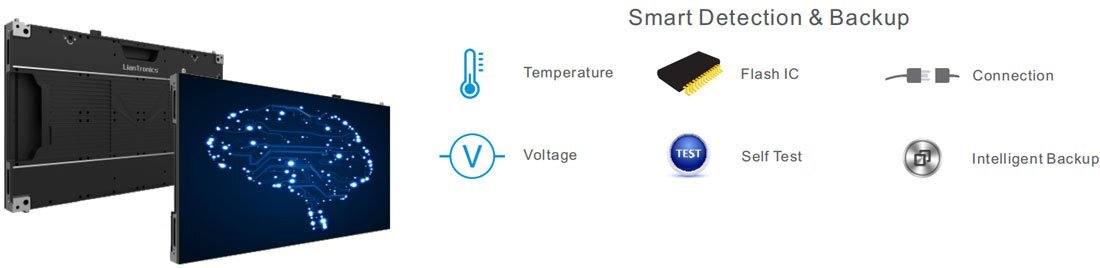

Intelligent System and Module

VF series’ intelligent modules allow for comprehensive monitoring of cabinets. Smart data backup, one-button reset, Automatic LED module calibration, and image rotation are also incorporated.
